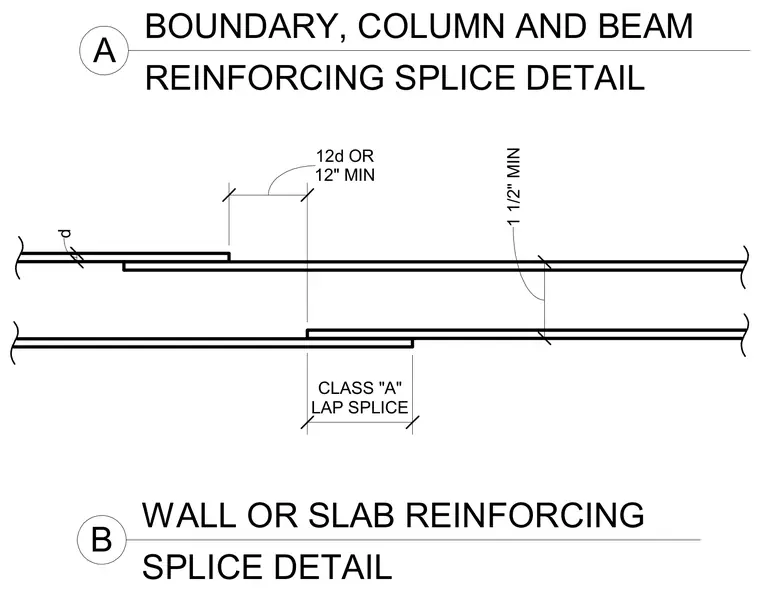

Reinforcing steel bars overlap in a Class A lap splice configuration for concrete boundary elements, columns, beams, walls, and slabs. The overlap requires a minimum lap length of twelve bar diameters or twelve inches, whichever is greater, with a minimum clear cover dimension of one and one-half inches.
BOUNDARY, COLUMN AND BEAM REINFORCING SPLICE DETAIL SPLICE DETAIL WALL OR SLAB REINFORCING B A 12" MIN 12d OR d 1 1/2" MIN CLASS "A" LAP SPLICE
