Structural · S-MJ3SJ

Tie-Back and Lifeline Anchor Connection at Steel Column and Beam

Materials

Concrete Steel

Elements

Columns Beams Roofs Decks Anchors / Embeds Reinforcing

Connections

Welded Connection

About this detail

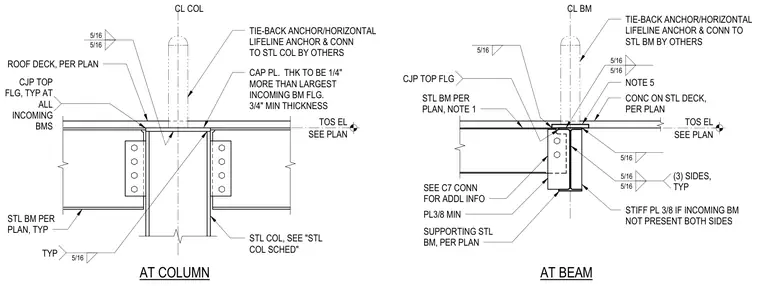

Tie-back and horizontal lifeline anchor connections mount to structural steel columns and beams. The assembly at the column features a cap plate with a thickness specified as one-quarter inch greater than the largest incoming steel beam flange and a three-quarter inch minimum thickness, welded to the steel column with complete joint penetration welds at the top flange and five-sixteenth inch fillet welds typically. The beam connection incorporates a three-eighth inch minimum stiffener plate provided on both sides if the incoming beam is not present, secured with five-sixteenth inch fillet welds on three sides. Concrete on steel deck or roof deck conditions are detailed per plan with top of steel elevations established. Anchor connections and connections to steel members are furnished by others.
