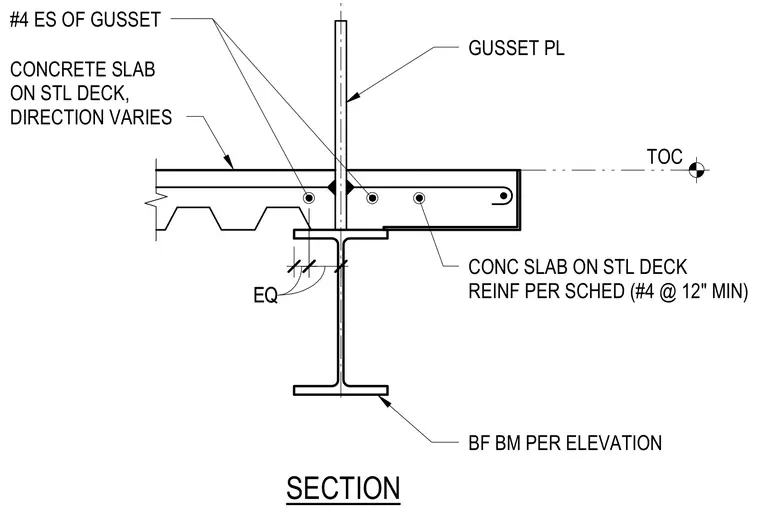

A vertical gusset plate passes through a concrete slab on steel deck and is welded directly to the top flange of a supporting steel beam. The concrete slab features reinforcement per schedule with number 4 bars at 12 inches minimum, including number 4 bars on each side of the gusset plate. The structural beam is sized per elevation. The top of concrete elevation is marked.
GUSSET PL CONC SLAB ON STL DECK REINF PER SCHED (#4 @ 12" MIN) TOC CONCRETE SLAB ON STL DECK, DIRECTION VARIES #4 ES OF GUSSET SECTION BF BM PER ELEVATION EQ EQ
