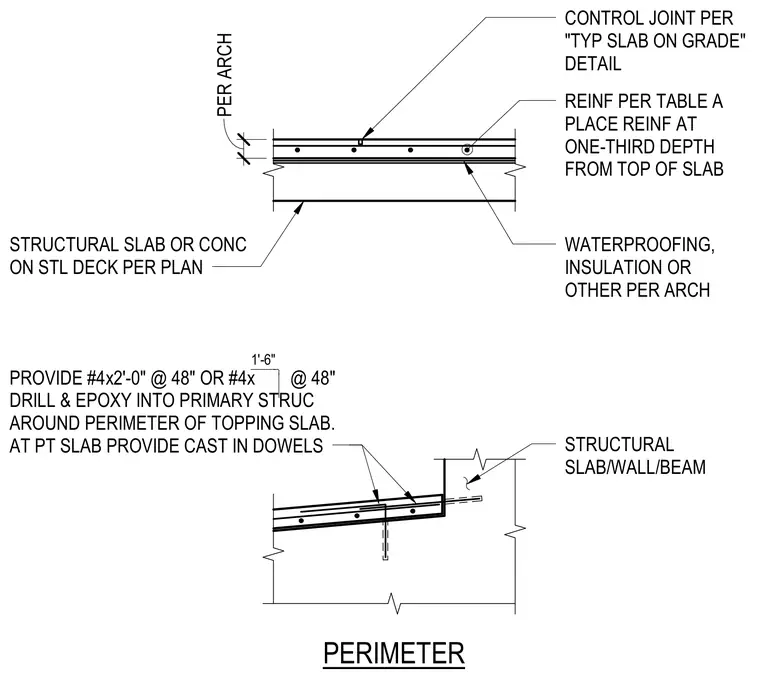

Perimeter edge condition for a concrete topping slab bearing on a structural slab, concrete on steel deck, or structural wall and beam. Number 4 reinforcing bars measuring two feet in length are drilled and epoxied into the primary structure at forty-eight inches on center around the perimeter of the topping slab, with cast-in dowels provided at post-tensioned slabs. Reinforcement is placed at one-third depth from the top of the slab, accompanied by architectural waterproofing, insulation, and control joints as specified per plan.
PROVIDE #4x2'-0" @ 48" OR #4x @ 48" DRILL & EPOXY INTO PRIMARY STRUC AROUND PERIMETER OF TOPPING SLAB. AT PT SLAB PROVIDE CAST IN DOWELS STRUCTURAL SLAB OR CONC ON STL DECK PER PLAN WATERPROOFING, INSULATION OR OTHER PER ARCH REINF PER TABLE A PLACE REINF AT ONE-THIRD DEPTH FROM TOP OF SLAB CONTROL JOINT PER "TYP SLAB ON GRADE" DETAIL PERIMETER STRUCTURAL SLAB/WALL/BEAM 1'-6" 4" PER ARCH
