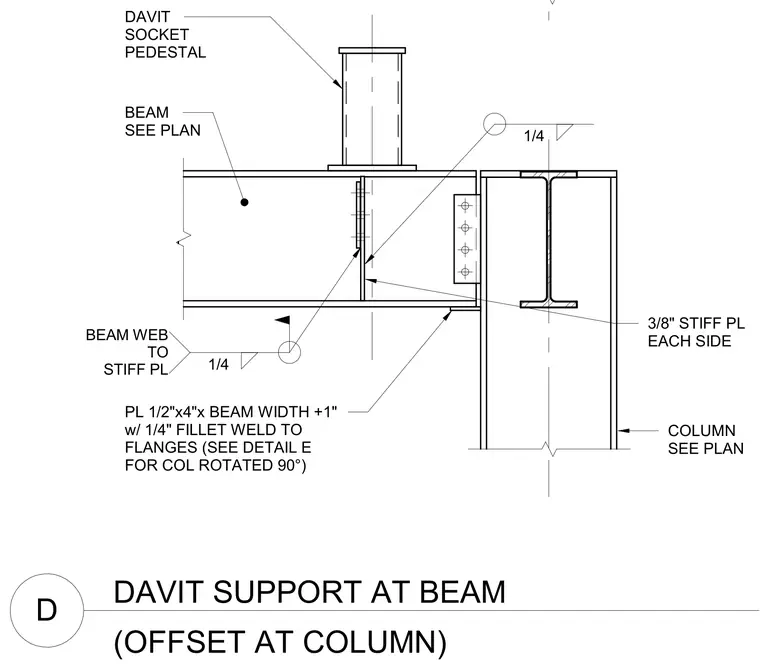

A davit socket pedestal is mounted atop a structural steel beam, which connects to a steel column offset from the support centerline. Three-eighths-inch stiffener plates are welded to each side of the column web using quarter-inch fillet welds. A one-half-inch by four-inch plate, sized to the beam width plus one inch, is secured to the beam flanges with quarter-inch fillet welds. The beam web is connected to the stiffener plate with quarter-inch fillet welds.
(OFFSET AT COLUMN) DAVIT SUPPORT AT BEAM D PL 1/2"x4"x BEAM WIDTH +1" w/ 1/4" FILLET WELD TO FLANGES (SEE DETAIL E FOR COL ROTATED 90°) BEAM SEE PLAN DAVIT SOCKET PEDESTAL 3/8" STIFF PL EACH SIDE COLUMN SEE PLAN 1/4 1/4 BEAM WEB TO STIFF PL
