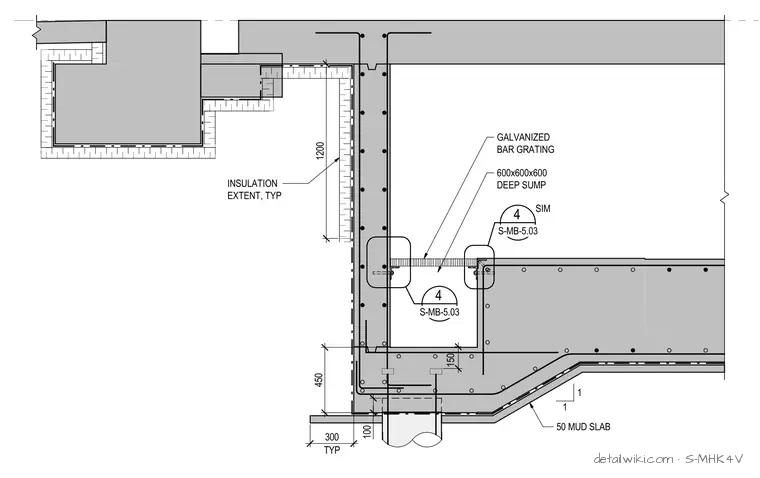

This structural section details a concrete sump pit integrated into the floor slab assembly, featuring a galvanized bar grating seated over a six hundred by six hundred by six hundred deep sump. The surrounding concrete walls are lined with insulation extending as indicated, backed by a sub-base mud slab of one hundred millimeters thickness. Dimensional callouts indicate a three hundred millimeter typical thickness alongside vertical extents of twelve hundred and four hundred fifty millimeters.
GALVANIZED BAR GRATING 600x600x600 DEEP SUMP 1 1 4 S-MB-5.03 4 S-MB-5.03 SIM 150 INSULATION EXTENT, TYP 50 MUD SLAB 1200 450 100 TYP 300
