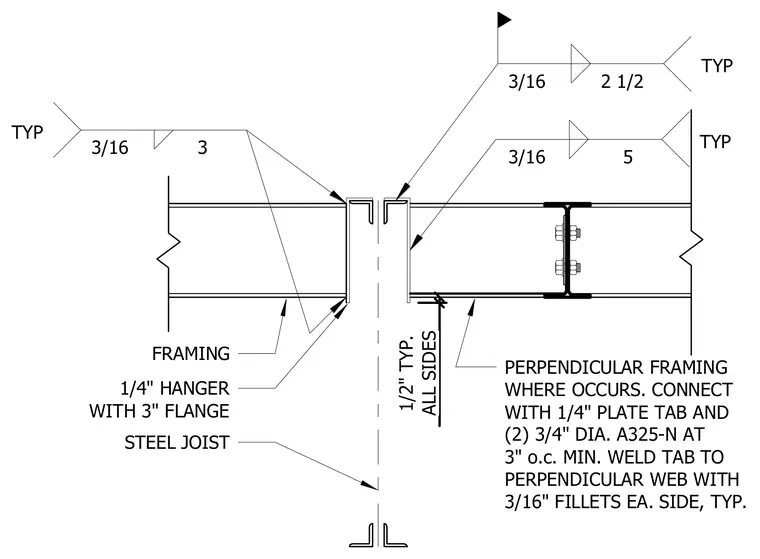

A steel framing connection detail shows a channel or wide flange member framing into a steel joist utilizing a one-quarter-inch hanger with a three-inch flange. Perpendicular framing where it occurs connects with a one-quarter-inch plate tab secured by two three-quarter-inch diameter A325-N bolts at three inches on-center minimum. The plate tab is welded to the perpendicular web with three-sixteenth-inch fillet welds on each side typically. Additional three-sixteenth-inch fillet welds secure the assembly with typical dimensions of two-and-one-half inches and five inches. A one-half-inch typical clearance is maintained on all sides.
1/2" TYP. ALL SIDES STEEL JOIST 1/4" HANGER WITH 3" FLANGE FRAMING 3/16 3 TYP TYP 5 3/16 3/16 2 1/2 TYP PERPENDICULAR FRAMING WHERE OCCURS. CONNECT WITH 1/4" PLATE TAB AND (2) 3/4" DIA. A325-N AT 3" o.c. MIN. WELD TAB TO PERPENDICULAR WEB WITH 3/16" FILLETS EA. SIDE, TYP.
