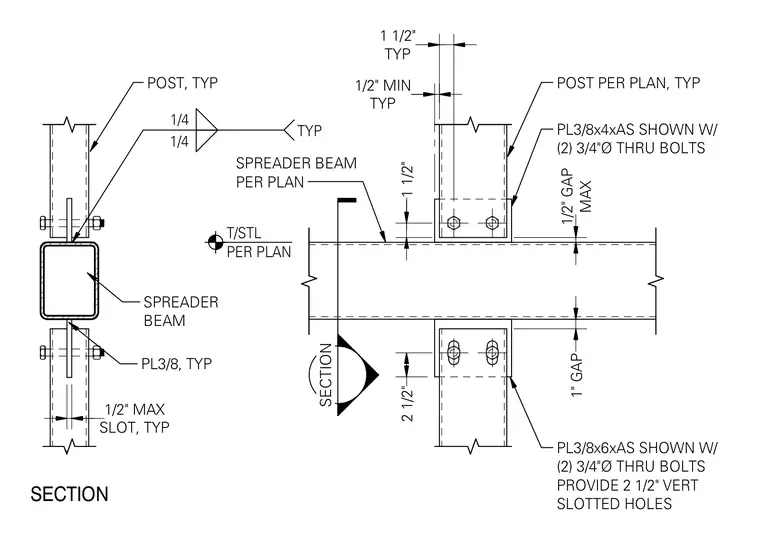

A post connects to a spreader beam using three-eighths inch thick plates. The connection features three-quarter inch diameter through-bolts and vertical slotted holes allowing for adjustable movement with a maximum half-inch gap. Fillet welds of quarter-inch size secure the connection assemblies to the structural members as specified per plan.
T/STL PER PLAN SECTION POST PER PLAN, TYP SPREADER BEAM PER PLAN SECTION PL3/8x4xAS SHOWN W/ (2) 3/4"Ø THRU BOLTS POST, TYP SPREADER BEAM 1/4 1/4 TYP SLOT, TYP 1/2" MAX TYP 1 1/2" TYP 1/2" MIN PL3/8, TYP 2 1/2" PL3/8x6xAS SHOWN W/ (2) 3/4"Ø THRU BOLTS PROVIDE 2 1/2" VERT SLOTTED HOLES MAX 1/2" GAP 1" GAP 1 1/2"
