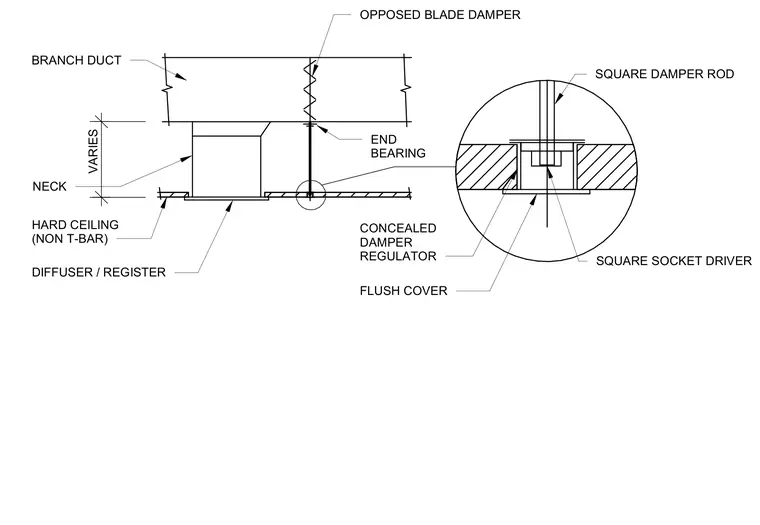

A branch duct supplies air to a flush cover diffuser or register installed in a non-T-bar hard ceiling. An opposed blade damper is positioned inside the duct with an end bearing supporting a square damper rod. A concealed damper regulator is integrated into the assembly, featuring a square socket driver accessible through a flush cover.
FLUSH COVER DIFFUSER / REGISTER HARD CEILING (NON T-BAR) NECK VARIES BRANCH DUCT CONCEALED DAMPER REGULATOR SQUARE SOCKET DRIVER SQUARE DAMPER ROD OPPOSED BLADE DAMPER END BEARING
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
