Lightning protection and grounding assembly for a roof drain, utilizing a class II copper down conductor connected via exothermic welds. A five-eighths inch by eighteen-inch blunt tipped solid copper air terminal integrates with a continuous class II copper potential equalization loop. L-brackets with mechanical cable holders mount to insulated metal panels to secure the conductors. All cable connections require exothermic welding, and conductors must maintain a minimum bend radius of eight inches in accordance with FAA-STD-019G.

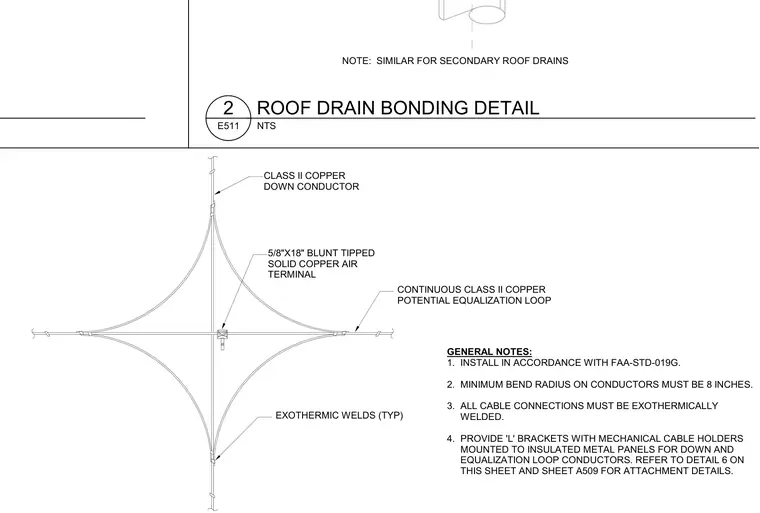

NOTE: SIMILAR FOR SECONDARY ROOF DRAINS CLASS II COPPER DOWN CONDUCTOR CONTINUOUS CLASS II COPPER POTENTIAL EQUALIZATION LOOP EXOTHERMIC WELDS (TYP) 5/8"X18" BLUNT TIPPED SOLID COPPER AIR TERMINAL GENERAL NOTES: 1. INSTALL IN ACCORDANCE WITH FAA-STD-019G. 2. MINIMUM BEND RADIUS ON CONDUCTORS MUST BE 8 INCHES. 3. ALL CABLE CONNECTIONS MUST BE EXOTHERMICALLY WELDED. 4. PROVIDE 'L' BRACKETS WITH MECHANICAL CABLE HOLDERS MOUNTED TO INSULATED METAL PANELS FOR DOWN AND EQUALIZATION LOOP CONDUCTORS. REFER TO DETAIL 6 ON THIS SHEET AND SHEET A509 FOR ATTACHMENT DETAILS. NTS E511 2 ROOF DRAIN BONDING DETAIL
