Reinforcement Detailing and Stirrup Hook Dimensions

Elements

About this detail

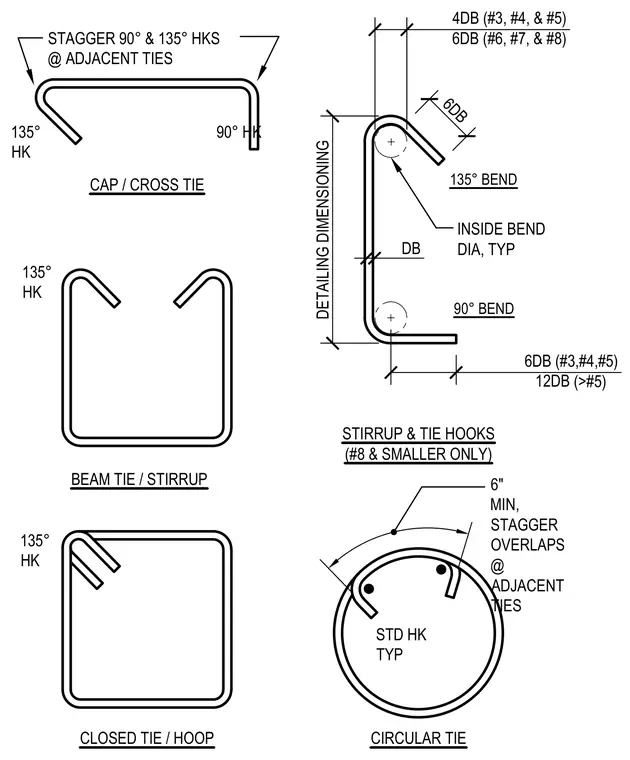

Standard detailing dimensions and hook configurations are provided for concrete reinforcement. Standard bend geometries include 90 degree and 135 degree hooks for bar sizes number eight and smaller. Extension lengths are specified as four bar diameters for sizes number three through number five, and six bar diameters for sizes number six through number eight, with twelve bar diameters for sizes greater than number five. Cap ties, beam stirrups, closed hoops, and circular ties have specific requirements for staggering overlaps and alternating hook angles at adjacent ties.
