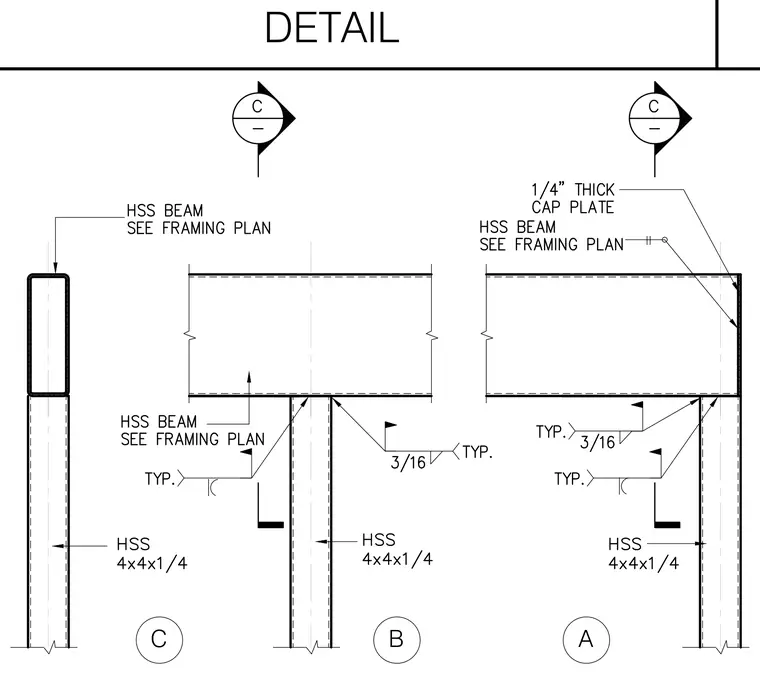

An HSS beam connects to an HSS 4x4x1/4 column utilizing a 3/16 inch typical fillet weld. The top condition features a 1/4 inch thick cap plate welded to the end of the HSS beam with a 3/16 inch typical fillet weld. Member sizes and beam profiles are specified per the structural framing plan. Three distinct connection elevations are designated as details A, B, and C.
