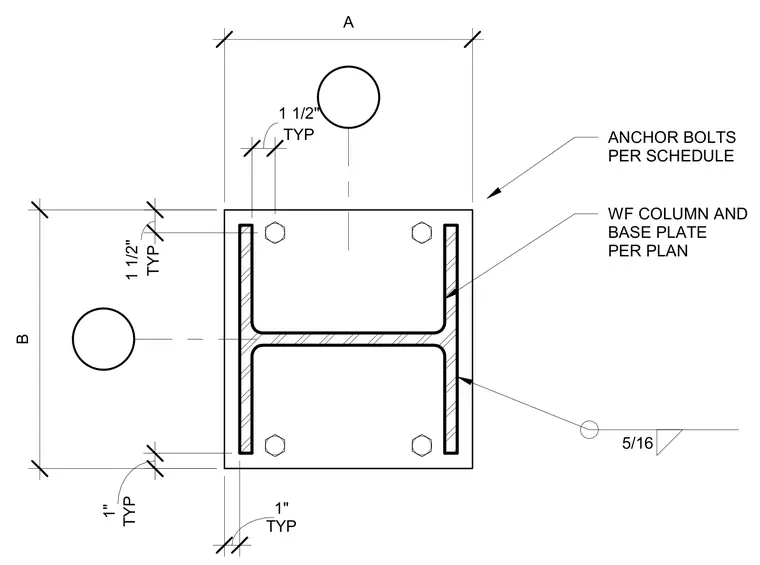

A wide flange column and base plate are anchored by anchor bolts sized per schedule, featuring edge distances of 1 inch and 1 1/2 inches typical. The column is secured to the base plate with a 5/16-inch typical fillet weld.
ANCHOR BOLTS PER SCHEDULE WF COLUMN AND BASE PLATE PER PLAN 5/16 A B TYP 1 1/2" TYP 1 1/2" TYP 1" TYP 1"
