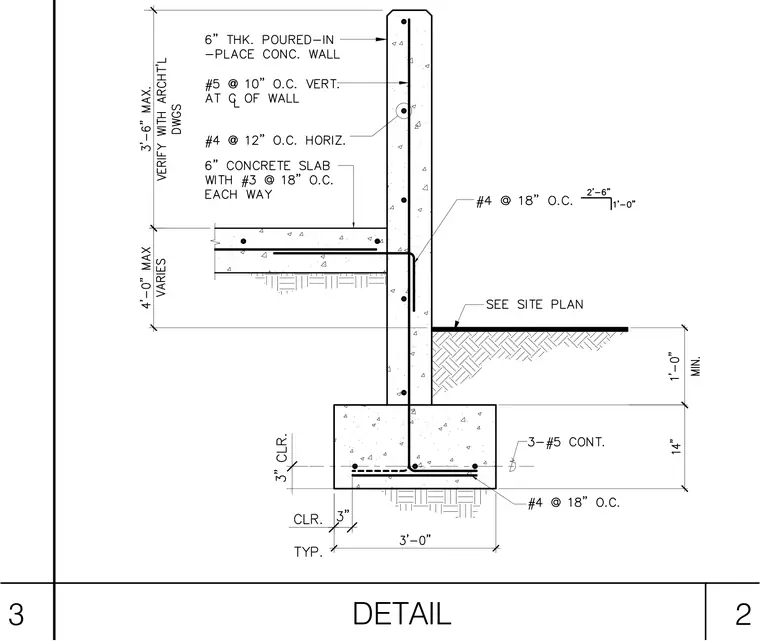

A six-inch thick poured-in-place concrete wall is supported by a three-foot wide concrete footing. The wall features number five vertical reinforcing bars at ten inches on center along the centerline and number four horizontal reinforcing bars at twelve inches on center. A six-inch concrete slab intersects the wall, reinforced with number three bars at eighteen inches on center each way. The footing contains three continuous number five bars and number four bars at eighteen inches on center. A soil grade line is indicated with exterior drainage per the site plan.
