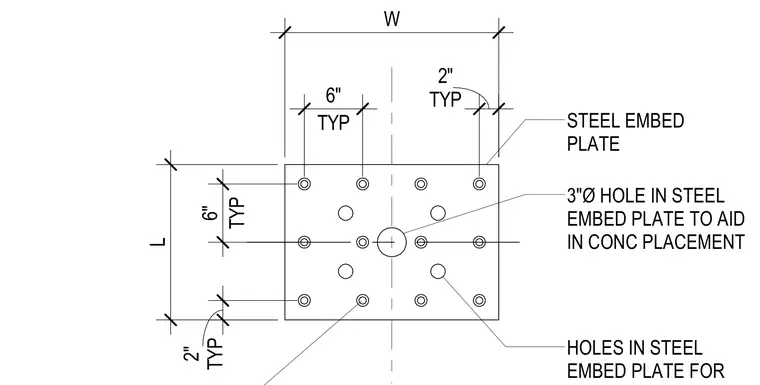

A steel embed plate is detailed in plan view with overall dimensions length L and width W. A three-inch diameter hole is centered in the plate to aid in concrete placement. Additional holes for anchors are spaced at six inches typically with two-inch edge clearances typically.
STEEL EMBED PLATE HOLES IN STEEL EMBED PLATE FOR L W 3"Ø HOLE IN STEEL EMBED PLATE TO AID IN CONC PLACEMENT TYP 2" TYP 6" TYP 6" TYP 2"
