Structural · S-MGBZX

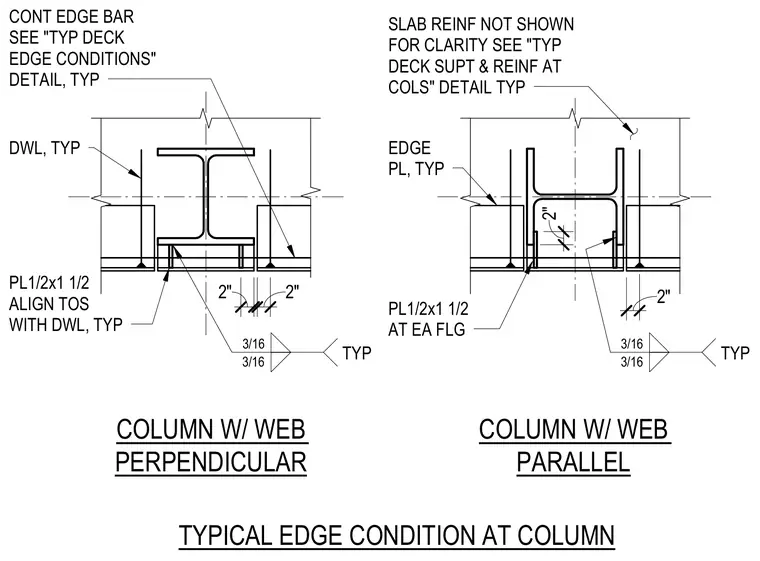

Typical Edge Condition at Column

Elements

About this detail

A structural steel column assembly at the concrete slab edge accommodates columns with webs oriented both perpendicular and parallel to the edge. Steel plates measuring 1/2 inch by 1 1/2 inches are welded to the column flanges with three-sixteenths-inch fillet welds, aligned with the top of slab. Continuous edge bars and dowels reinforce the slab perimeter around the column profile, while main slab reinforcement is omitted for clarity. The assembly coordinates the concrete floor slab edge with structural steel column framing.
