Mechanical service lines are routed underneath the foundation wall and strip footing within a shored trench excavated into the approved subgrade. The trench sides are temporarily shored and fitted with temporary braces as required, to be removed in stages during construction. The service line rests on bedding of approved fill and is surrounded by gravel backfill compacted to one hundred percent standard proctor dry density.

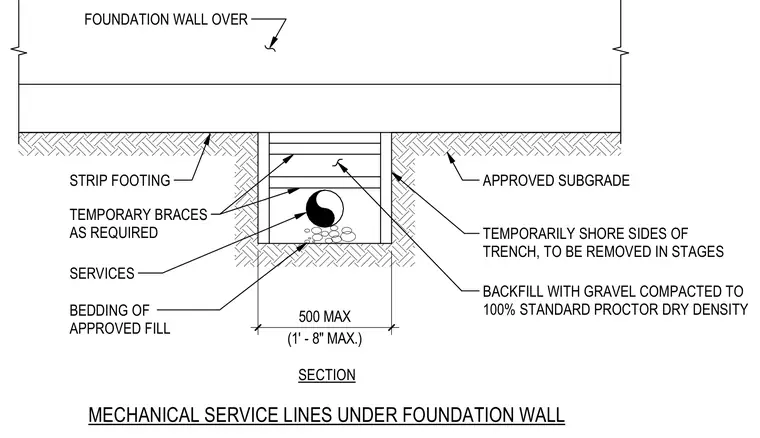

MECHANICAL SERVICE LINES UNDER FOUNDATION WALL SECTION BACKFILL WITH GRAVEL COMPACTED TO 100% STANDARD PROCTOR DRY DENSITY TEMPORARILY SHORE SIDES OF TRENCH, TO BE REMOVED IN STAGES TEMPORARY BRACES AS REQUIRED SERVICES FOUNDATION WALL OVER STRIP FOOTING BEDDING OF APPROVED FILL APPROVED SUBGRADE (1' - 8" MAX.) 500 MAX
