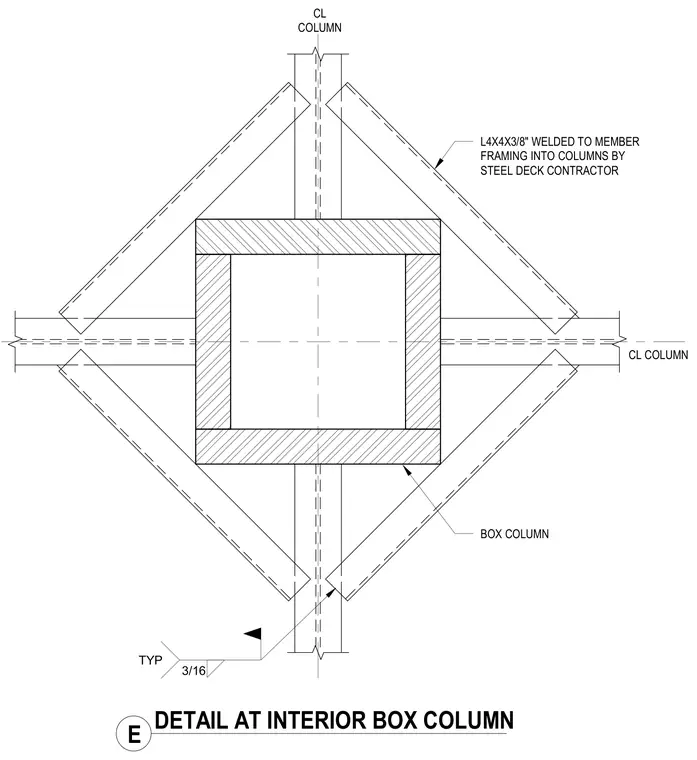

An interior structural box column connects to surrounding framing members via an L4x4x3/8-inch steel angle welded in place by the steel deck contractor. A three-sixteenths-inch typical fillet weld secures the angle connection to the framing members centered on the column lines. The detail establishes the framing layout and weld specifications around a four-sided built-up box column.
BOX COLUMN L4X4X3/8" WELDED TO MEMBER FRAMING INTO COLUMNS BY STEEL DECK CONTRACTOR CL COLUMN CL COLUMN 3/16 TYP E DETAIL AT INTERIOR BOX COLUMN
