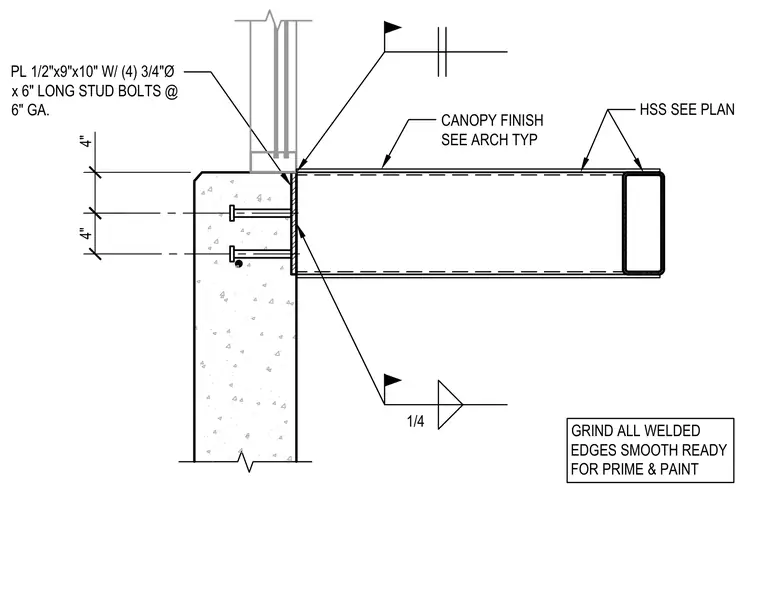

A 4-inch by 4-inch by 1/4-inch hollow structural section canopy frame connects to a concrete wall using a 1/2-inch by 9-inch by 10-inch steel plate anchored by four 3/4-inch diameter by 6-inch long stud bolts at a 6-inch gauge. The structural connection includes a 1/4-inch fillet weld, and all welded edges are specified to be ground smooth and prepared for prime and paint.
4" 4" 1/4 HSS SEE PLAN PL 1/2"x9"x10" W/ (4) 3/4"Ø x 6" LONG STUD BOLTS @ 6" GA. GRIND ALL WELDED EDGES SMOOTH READY FOR PRIME & PAINT CANOPY FINISH SEE ARCH TYP
