A continuous concrete curb bears directly on top of a concrete slab. The curb is reinforced with a continuous number four rebar running longitudinally. Number four hooked dowels spaced at twenty-four inches on center anchor the curb into the underlying slab, epoxied two and one-half inches deep into the cured concrete. Slab thickness and reinforcing are sized per structural plans and notes, while curb dimensions are coordinated with the architect.

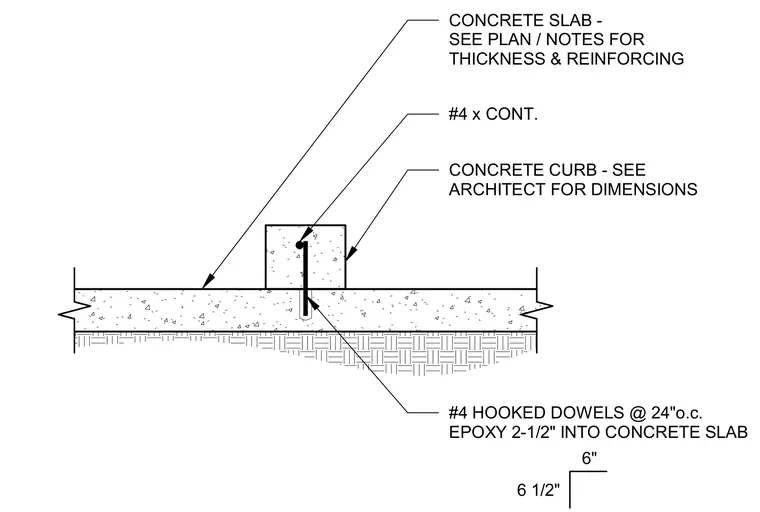

6" ? #4 x CONT. CONCRETE CURB - SEE ARCHITECT FOR DIMENSIONS #4 HOOKED DOWELS @ 24"o.c. EPOXY 2-1/2" INTO CONCRETE SLAB CONCRETE SLAB - SEE PLAN / NOTES FOR THICKNESS & REINFORCING 6 1/2"
