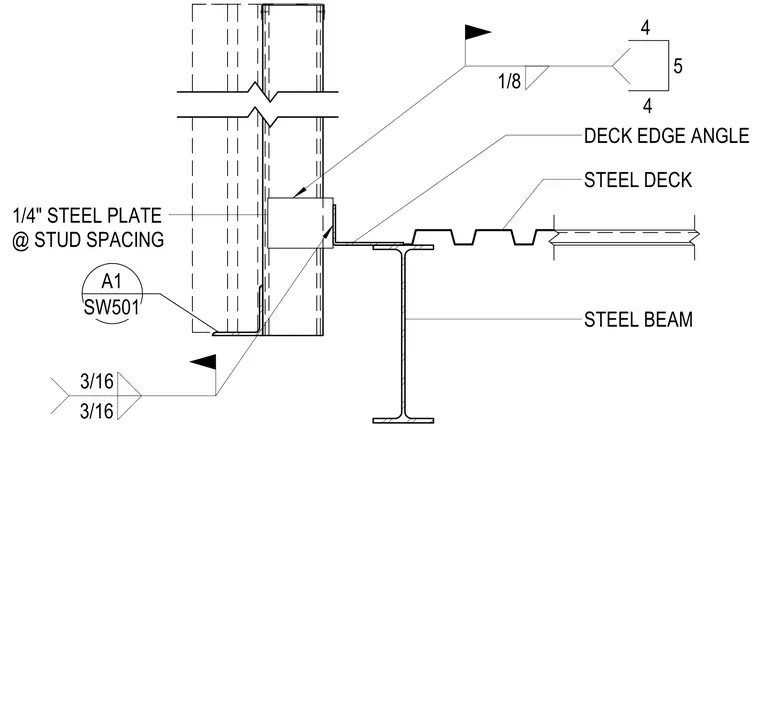

A cantilevered steel stud assembly bears against a structural steel beam and steel deck. A deck edge angle ties the floor deck to the vertical framing. One-quarter-inch steel plates are spaced at regular intervals matching the stud spacing. Welds secure the framing components with specified sizes indicated on the drawing.
STEEL DECK STEEL BEAM 1/4" STEEL PLATE @ STUD SPACING DECK EDGE ANGLE 1/8 3/16 3/16 4 4 5 SW501 A1
