A cross-laminated timber deck bears directly on a continuous steel angle measuring L152x152x9.5, with wood shims provided to suit the slope. The continuous angle transfers loads to a supporting W760x161 steel beam equipped with 10 millimeter thick stiffeners measuring 126.1 millimeter by 320.4 millimeter spaced at 900 millimeters. Fasteners for the cross-laminated timber deck are specified per general notes.

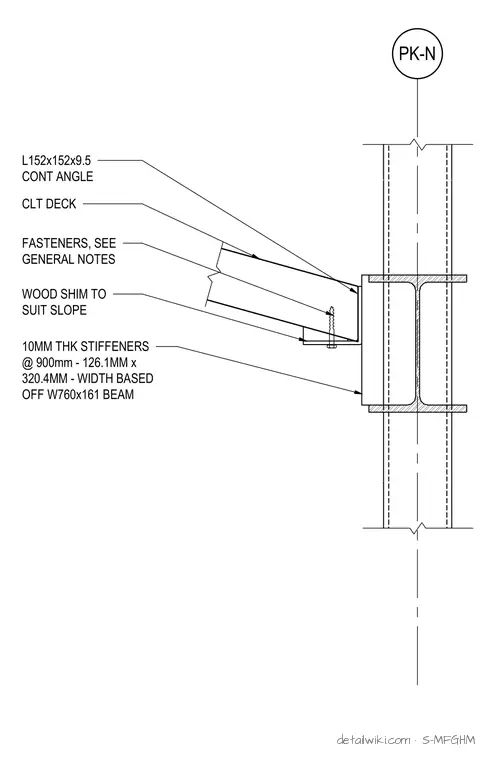

PK-N CLT DECK FASTENERS, SEE GENERAL NOTES WOOD SHIM TO SUIT SLOPE L152x152x9.5 CONT ANGLE 10MM THK STIFFENERS @ 900mm - 126.1MM x 320.4MM - WIDTH BASED OFF W760x161 BEAM
