Two number four bars measuring four feet long are placed at each corner of a depressed concrete slab where control or construction joints do not extend from the corner. Two number four bars measuring four feet long are also placed where control or construction joints intersect but do not continue beyond the intersection.

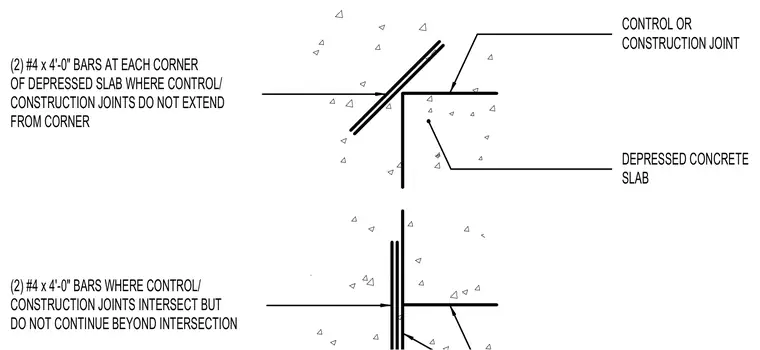

DEPRESSED CONCRETE SLAB (2) #4 x 4'-0" BARS WHERE CONTROL/ CONSTRUCTION JOINTS INTERSECT BUT DO NOT CONTINUE BEYOND INTERSECTION (2) #4 x 4'-0" BARS AT EACH CORNER OF DEPRESSED SLAB WHERE CONTROL/ CONSTRUCTION JOINTS DO NOT EXTEND FROM CORNER CONTROL OR CONSTRUCTION JOINT
