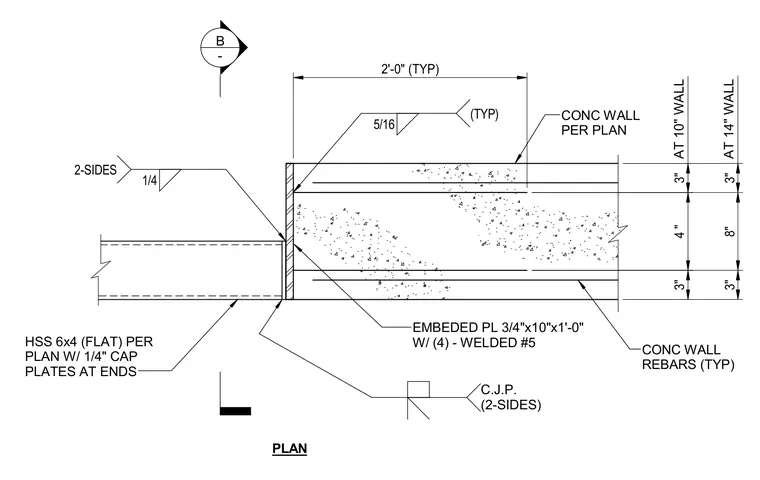

A hollow structural section member measuring six by four inches features quarter-inch cap plates at its ends and connects to a reinforced concrete wall per plan. The concrete wall contains an embedded steel plate measuring three-quarters by ten inches by one foot zero inches, anchored with four welded number five reinforcing bars. A five-sixteenths fillet weld typical connection joins the assembly, with complete joint penetration welds applied on two sides as indicated.
B - PLAN HSS 6x4 (FLAT) PER PLAN W/ 1/4" CAP PLATES AT ENDS CONC WALL PER PLAN EMBEDED PL 3/4"x10"x1'-0" W/ (4) - WELDED #5 1/4 2-SIDES 2'-0" (TYP) 5/16 (TYP) C.J.P. (2-SIDES) 3" 4 " 3" AT 10" WALL 3" 8" 3" AT 14" WALL CONC WALL REBARS (TYP)
