Structural · S-MEZDN

Typical Concrete Coupling Beam Reinforcement Section

Elements

Connections

About this detail

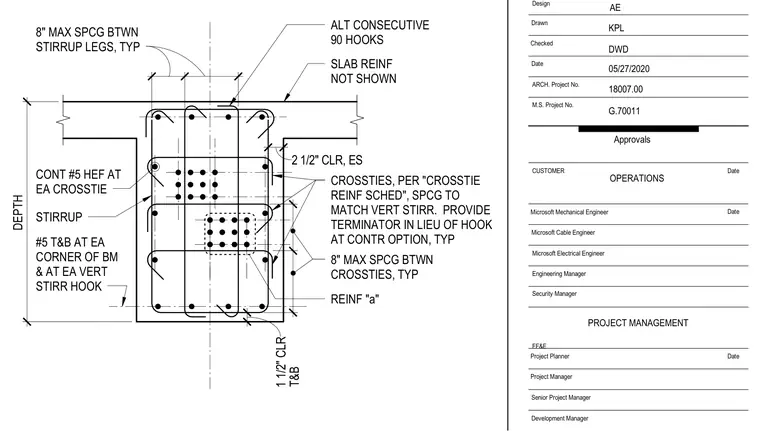

A reinforced concrete coupling beam section features a typical thirty-six-inch depth. The assembly incorporates continuous number five bars at each crosstie, vertical stirrups with alternating consecutive ninety-degree hooks, and interior reinforcing bars designated as 'a'. Crossties are spaced per the crosstie reinforcement schedule to match the vertical stirrups, with a maximum spacing of eight inches between stirrup legs and crossties. Clearances measure two and a half inches on each side and one and a half inches top and bottom, with number five top and bottom bars at each corner of the beam and at each vertical stirrup hook. A mechanical terminator may be provided in lieu of a hook at the contractor's option, while slab reinforcement is omitted from this view.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
