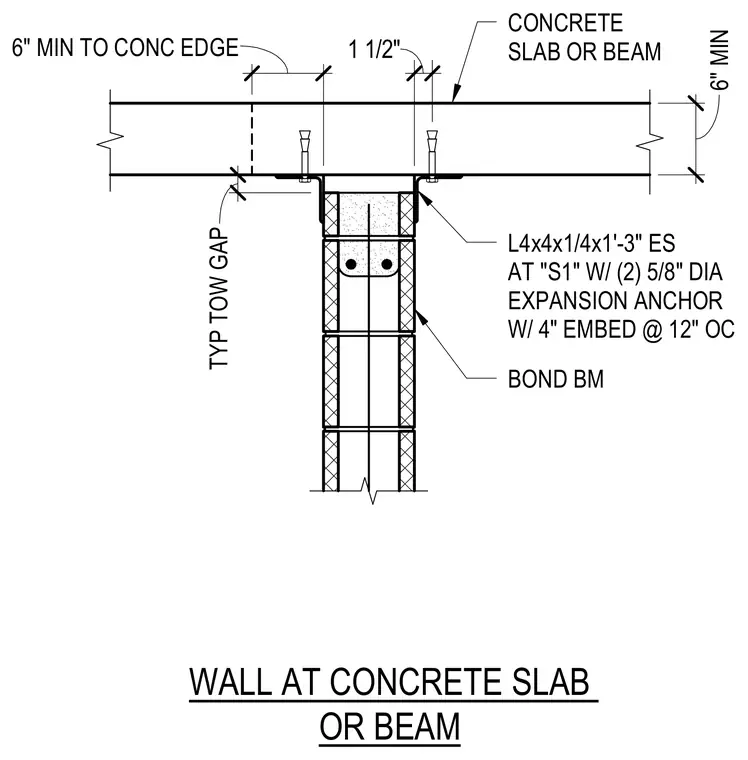

A concrete masonry unit bond beam terminates below an overhead concrete slab or beam with a typical top-of-wall gap. An L4x4x1/4 by 1'-3" angle is anchored to each side of the bond beam. Each angle is secured to the concrete slab or beam using two 5/8-inch diameter expansion anchors with a 4-inch embedment spaced at 12 inches on center.
CONCRETE SLAB OR BEAM L4x4x1/4x1'-3" ES AT "S1" W/ (2) 5/8" DIA EXPANSION ANCHOR W/ 4" EMBED @ 12" OC BOND BM WALL AT CONCRETE SLAB OR BEAM 1 1/2" TYP TOW GAP 6" 6" MIN 6" 6" MIN TO CONC EDGE 1 1/2"
