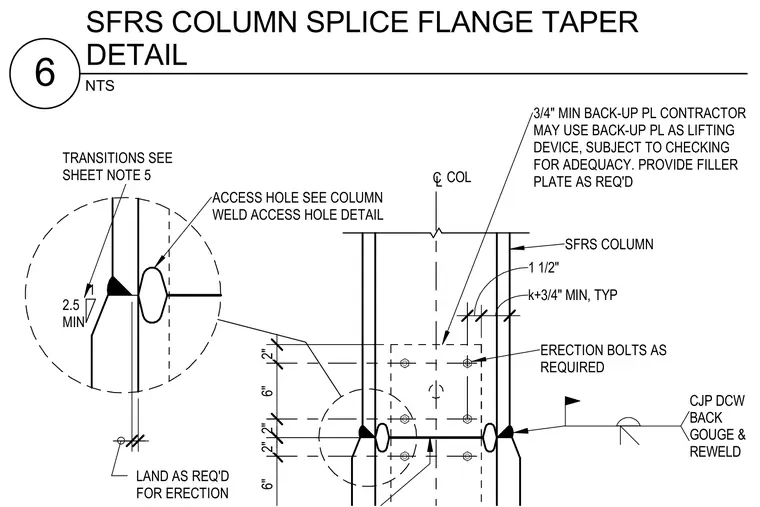

A structural steel column splice connection for a special moment frame or SFRS column features a flange taper transition. The connection utilizes a complete joint penetration groove weld with back gouging and rewelding, supported by a minimum three-quarter-inch backing plate that may double as a lifting device subject to adequacy checks. Erection bolts are provided as required alongside filler plates to accommodate dimensional discrepancies. Access holes are detailed per standard column weld access requirements, with a minimum two-point-five taper transition slope.
C L COL SFRS COLUMN 1 2.5 MIN TRANSITIONS SEE SHEET NOTE 5 ACCESS HOLE SEE COLUMN WELD ACCESS HOLE DETAIL LAND AS REQ'D FOR ERECTION CJP DCW BACK GOUGE & REWELD 2" 6" 2" 2" 6" 1 1/2" k+3/4" MIN, TYP ERECTION BOLTS AS REQUIRED 3/4" MIN BACK-UP PL CONTRACTOR MAY USE BACK-UP PL AS LIFTING DEVICE, SUBJECT TO CHECKING FOR ADEQUACY. PROVIDE FILLER PLATE AS REQ'D NTS 6 SFRS COLUMN SPLICE FLANGE TAPER DETAIL
