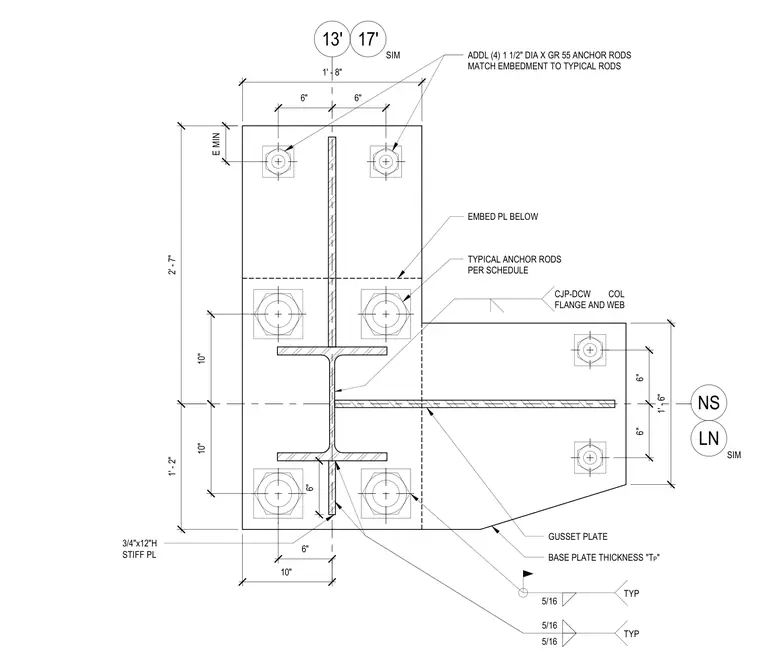

A structural steel buckling-restrained braced frame corner base plate connection features an embed plate below anchored by typical anchor rods per schedule, supplemented by four additional one-and-a-half-inch-diameter Grade 55 anchor rods. A column flange and web connect to the base plate using a complete joint penetration weld designated as CJP-DCW. Three-quarter-inch by twelve-inch horizontal stiffener plates weld to the column web and base plate with five-sixteenth-inch typical fillet welds. A gusset plate ties into the column and base assembly, welded with five-sixteenth-inch typical fillet welds.
13' NS LN 17' SIM SIM ADDL (4) 1 1/2" DIA X GR 55 ANCHOR RODS MATCH EMBEDMENT TO TYPICAL RODS TYPICAL ANCHOR RODS PER SCHEDULE CJP-DCW COL FLANGE AND WEB GUSSET PLATE BASE PLATE THICKNESS "T P " 6" 6" 1' - 6" 10" 2' - 7" 1' - 2" E MIN 5/16 TYP 6" 6" 1' - 8" EMBED PL BELOW 3/4"x12"H STIFF PL 5/16 5/16 TYP 6" 10" 10" 6"
