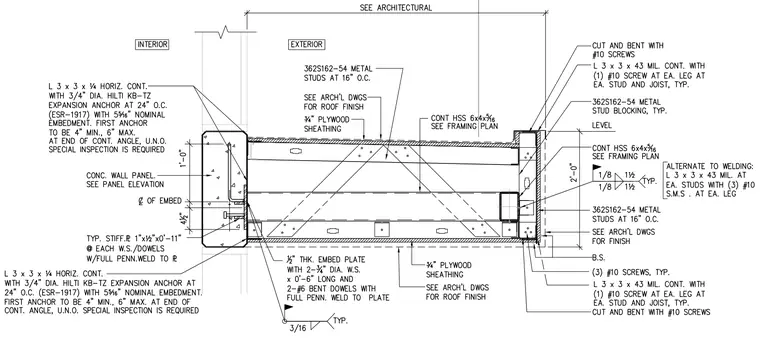

A continuous hollow structural section member connects to a concrete wall panel using a half-inch thick embed plate with two three-quarter-inch diameter headed stud anchors and two number six bent dowels welded with full penetration welds. The concrete wall panel receives a continuous three-by-three-by-quarter-inch angle secured with three-quarter-inch diameter Hilti KB-TZ expansion anchors spaced at twenty-four inches on center. Typical stiffener plates measuring one by half-inch by zero-foot-eleven-inches attach to each web side with dowels and full penetration welds. The exterior end features continuous hollow structural section members supporting thirty-six-two-S-one-six-dash-fifty-four metal stud blocking at sixteen inches on center with three-quarter-inch plywood sheathing. A continuous three-by-three-by-forty-three-mil angle fastens with number ten screws at each leg, stud, and joist, with alternate welded connection options using three-by-three-by-forty-three-mil angles and three number ten sheet metal screws.
