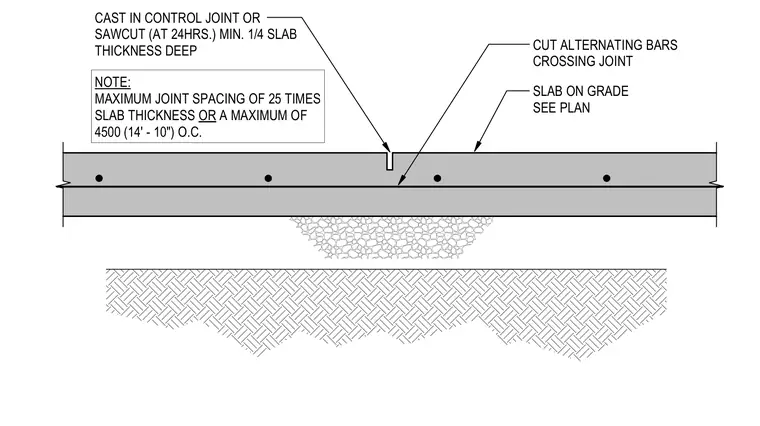

A control joint in a concrete slab on grade over a granular subbase and compacted subgrade. The joint is formed either as a cast-in control joint or via sawcutting at twenty-four hours, with a minimum depth of one-quarter the slab thickness. Reinforcing bars crossing the joint are cut in an alternating pattern to allow controlled cracking. A general note mandates a maximum joint spacing of twenty-five times the slab thickness or a maximum of four thousand five hundred millimeters, equivalent to fourteen feet ten inches, on center.
SLAB ON GRADE SEE PLAN CAST IN CONTROL JOINT OR SAWCUT (AT 24HRS.) MIN. 1/4 SLAB THICKNESS DEEP CUT ALTERNATING BARS CROSSING JOINT NOTE: MAXIMUM JOINT SPACING OF 25 TIMES SLAB THICKNESS OR A MAXIMUM OF 4500 (14' - 10") O.C.
