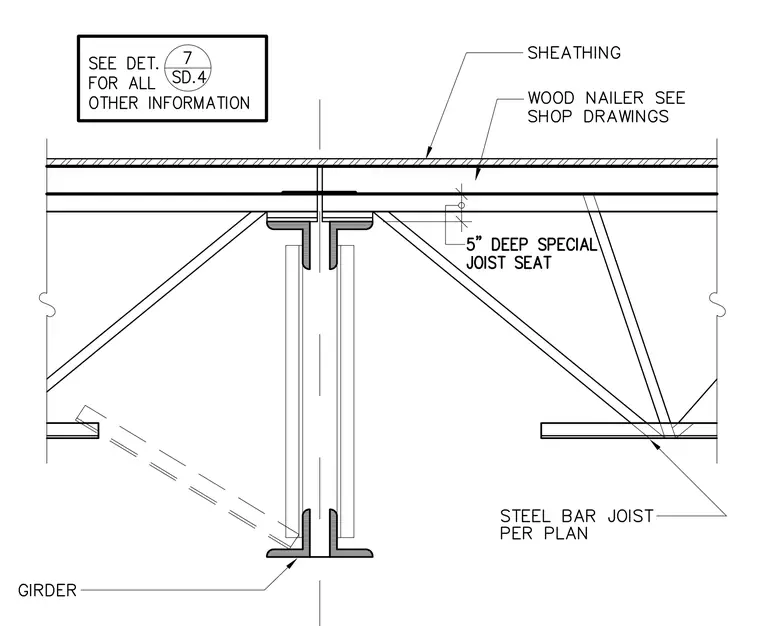

A steel bar joist bears on a structural steel girder via a five-inch deep special joist seat. A wood nailer is secured above the joist seat, supporting the roof or floor sheathing. A reference callout directs to detail seven on sheet SD.4 for additional connection information.
