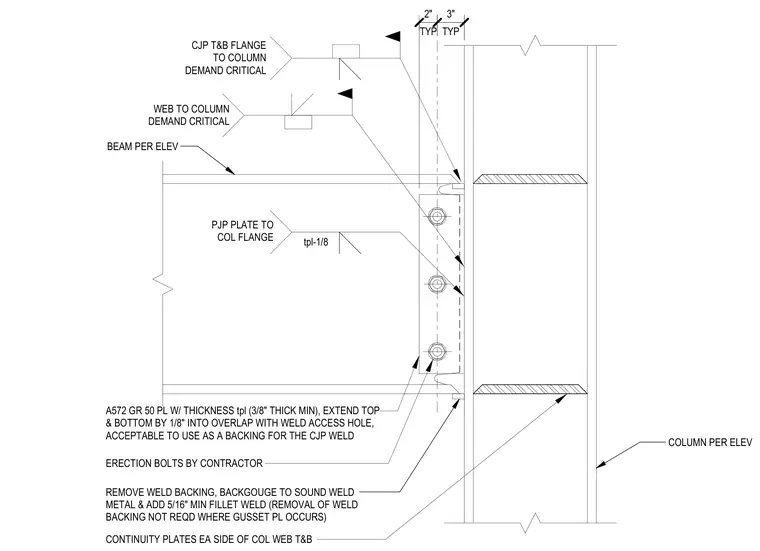

A wide-flange beam connects to a structural steel column flange using a welded moment connection with bolted erection plates. The beam top and bottom flanges connect to the column via demand-critical complete joint penetration welds with weld backing removed, backgouged to sound weld metal, and supplemented by five-sixteenths inch minimum fillet welds. The beam web fastens to the column flange with a plate made of ASTM A572 Grade 50 steel with a minimum thickness of three-eighths of an inch, extending top and bottom by one-eighth of an inch into the overlap with the weld access hole. Erection bolts are installed by the contractor. Continuity plates are provided on each side of the column web aligned with the beam top and bottom flanges.
ERECTION BOLTS BY CONTRACTOR A572 GR 50 PL W/ THICKNESS tpl (3/8" THICK MIN), EXTEND TOP & BOTTOM BY 1/8" INTO OVERLAP WITH WELD ACCESS HOLE, ACCEPTABLE TO USE AS A BACKING FOR THE CJP WELD CONTINUITY PLATES EA SIDE OF COL WEB T&B WEB TO COLUMN DEMAND CRITICAL tpl-1/8 PJP PLATE TO COL FLANGE CJP T&B FLANGE TO COLUMN DEMAND CRITICAL REMOVE WELD BACKING, BACKGOUGE TO SOUND WELD METAL & ADD 5/16" MIN FILLET WELD (REMOVAL OF WELD BACKING NOT REQD WHERE GUSSET PL OCCURS) COLUMN PER ELEV TYP 2" TYP 3" BEAM PER ELEV
