A concrete slab over metal deck bears on a wide-flange steel beam with a minimum two-inch deck bearing and a fluted deck closure. A one-quarter-inch continuous bent plate with number five deformed bar anchors spaced at eighteen inches on center is welded to the support. Diaphragm reinforcement consists of a minimum of two number five bars where not otherwise indicated, lapped up to twelve inches. The assembly accommodates deck spanning in the opposite direction at similar conditions.

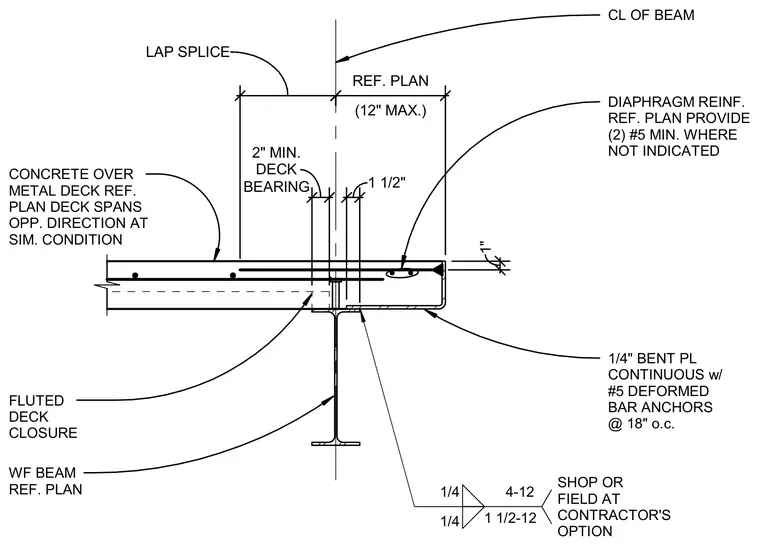

CL OF BEAM DIAPHRAGM REINF. REF. PLAN PROVIDE (2) #5 MIN. WHERE NOT INDICATED WF BEAM REF. PLAN FLUTED DECK CLOSURE CONCRETE OVER METAL DECK REF. PLAN DECK SPANS OPP. DIRECTION AT SIM. CONDITION BEARING 2" MIN. DECK 1/4" BENT PL CONTINUOUS w/ #5 DEFORMED BAR ANCHORS @ 18" o.c. 1/4 1/4 4-12 SHOP OR FIELD AT CONTRACTOR'S OPTION LAP SPLICE 1" 1 1/2" (12" MAX.) REF. PLAN 1 1/2-12
