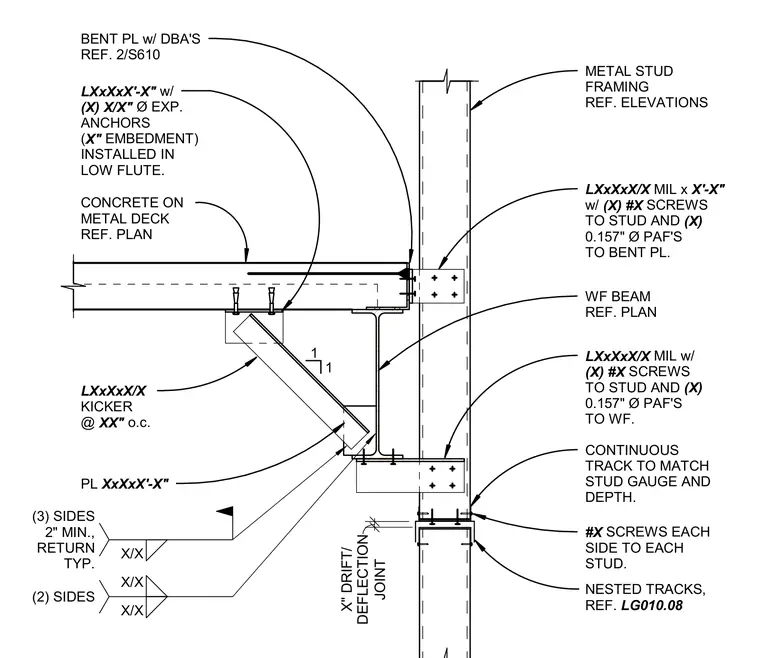

A cold-formed steel stud framing deflection head connection ties into a wide flange beam and a concrete on metal deck slab. The metal stud framing is secured with screws and powder-actuated fasteners to bent plates and the wide flange beam, incorporating a continuous track matching the stud gauge and depth with nested tracks below a designated drift and deflection joint. A kicker brace connects the slab anchor to the wide flange beam assembly using specified welds.
METAL STUD FRAMING REF. ELEVATIONS LXxXxX/X MIL x X'-X" w/ (X) #X SCREWS TO STUD AND (X) 0.157" Ø PAF'S TO BENT PL. LXxXxX/X MIL w/ (X) #X SCREWS TO STUD AND (X) 0.157" Ø PAF'S TO WF. CONTINUOUS TRACK TO MATCH STUD GAUGE AND DEPTH. #X SCREWS EACH SIDE TO EACH STUD. NESTED TRACKS, REF. LG010.08 CONCRETE ON METAL DECK REF. PLAN LXxXxX'-X" w/ (X) X/X" Ø EXP. ANCHORS ( X" EMBEDMENT) INSTALLED IN LOW FLUTE. LXxXxX/X KICKER @ XX" o.c. WF BEAM REF. PLAN 1 1 PL XxXxX'-X" JOINT X" DRIFT/ DEFLECTION X/X X/X (2) SIDES X/X (3) SIDES 2" MIN., RETURN TYP. BENT PL w/ DBA'S REF. 2/S610
