Structural · S-ME646

Typical Offset Beam Connection Details

Materials

Steel

Elements

Beams Connections / Plates

Connections

Welded Connection

About this detail

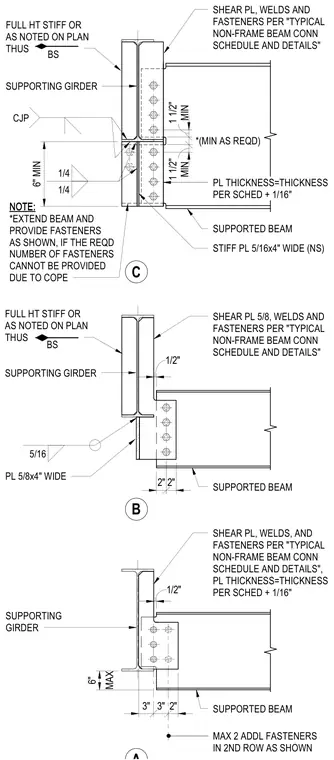

These details show offset structural steel beam-to-girder connections utilizing shear plates, stiffener plates, and bolted fasteners. The supported beam connects to the supporting girder web via a shear plate with a thickness equal to the schedule plus one-sixteenth of an inch. Stiffener plates, including full-height stiffeners or five-sixteenth by four-inch plates on the near side as noted, are provided on the supporting girder web. Welds include one-quarter inch and five-sixteenth inch fillet welds, as well as complete joint penetration welds where specified. Notes indicate extending the beam and providing additional fasteners if the required number cannot be met due to a beam cope.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
