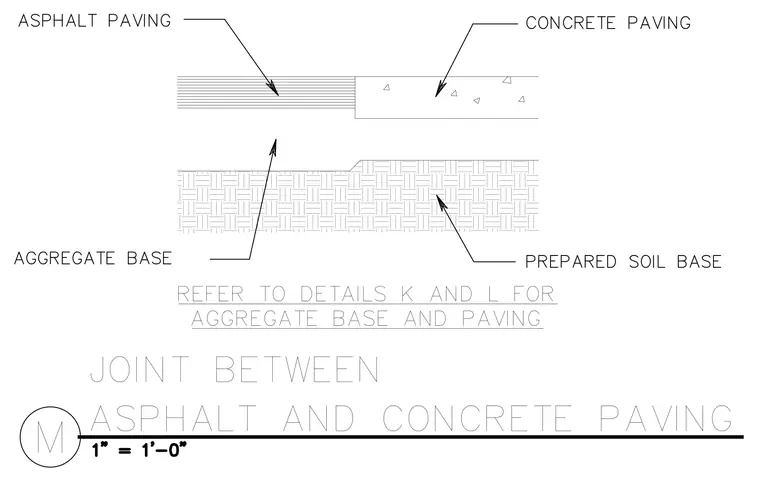

An asphalt paving layer transitions directly into a concrete paving slab, both resting upon an aggregate base layer. The aggregate base steps down beneath the asphalt section, while the entire assembly is supported on a prepared soil base underneath. A note indicates to refer to details K and L for aggregate base and paving requirements.
