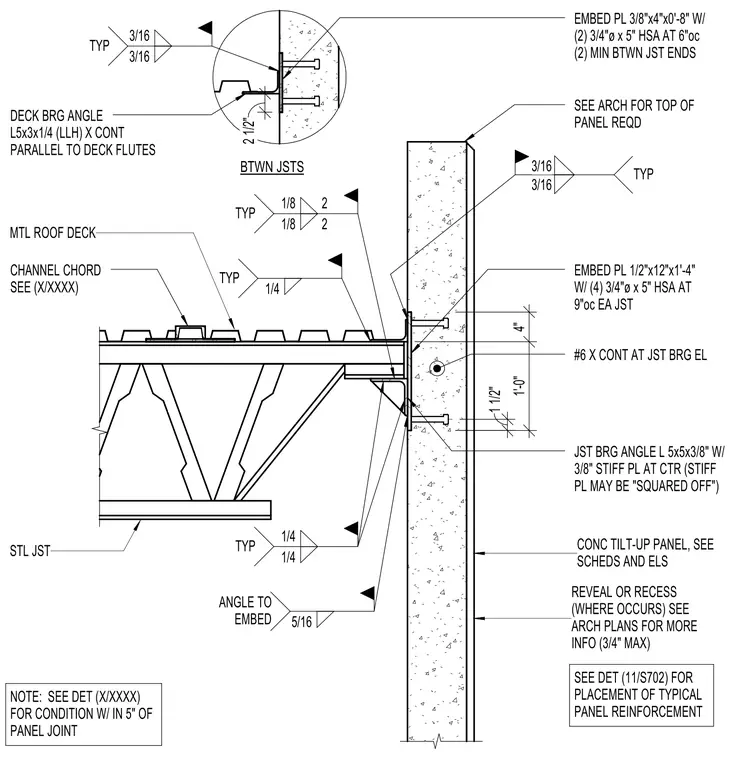

An open-web steel joist bears onto a concrete tilt-up wall panel through a bearing angle connected to an embedded steel plate. The embedment plate measures 1/2 inch by 12 inches by 1 foot 4 inches and is secured with four 3/4-inch diameter by 5-inch heavy-duty sleeve anchors at 9 inches on center. The joist bearing angle is an L5x5x3/8 shape equipped with a 3/8-inch center stiffener plate. A continuous #6 reinforcing bar runs horizontally at the joist bearing elevation. A continuous deck bearing angle L5x3x1/4 is welded parallel to the metal roof deck flutes.
EMBED PL 3/8"x4"x0'-8" W/ (2) 3/4"ø x 5" HSA AT 6"oc (2) MIN BTWN JST ENDS SEE ARCH FOR TOP OF PANEL REQD EMBED PL 1/2"x12"x1'-4" W/ (4) 3/4"ø x 5" HSA AT 9"oc EA JST #6 X CONT AT JST BRG EL JST BRG ANGLE L 5x5x3/8" W/ 3/8" STIFF PL AT CTR (STIFF PL MAY BE "SQUARED OFF") NOTE: SEE DET (X/XXXX) FOR CONDITION W/ IN 5" OF PANEL JOINT CHANNEL CHORD SEE (X/XXXX) BTWN JSTS 2 1/2" 3/16 TYP 3/16 DECK BRG ANGLE L5x3x1/4 (LLH) X CONT PARALLEL TO DECK FLUTES 1/8 TYP 1/8 2 2 TYP 1/4 TYP 3/16 3/16 1/4 TYP 1/4 ANGLE TO EMBED 5/16 CONC TILT-UP PANEL, SEE SCHEDS AND ELS REVEAL OR RECESS (WHERE OCCURS) SEE ARCH PLANS FOR MORE INFO (3/4" MAX) STL JST MTL ROOF DECK 1'-0" 4" 1 1/2" SEE DET (11/S702) FOR PLACEMENT OF TYPICAL PANEL REINFORCEMENT
