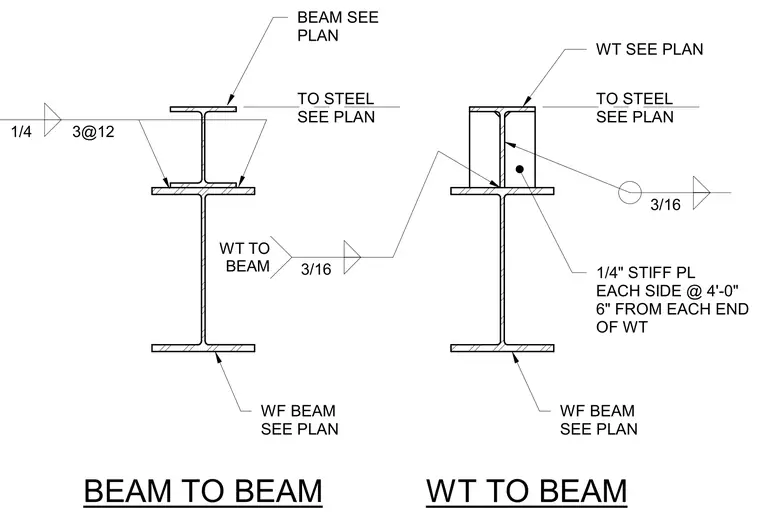

A wide flange beam supports a filler beam using a structural tee section sized per plan. A quarter-inch fillet weld connects the structural tee to the supporting beam flange. Quarter-inch stiffener plates are installed on each side of the structural tee spaced at four feet, positioned six inches from each end of the structural tee. Three-sixteenth-inch fillet welds secure the stiffener plates to the structural tee web.
BEAM TO BEAM WT TO BEAM WF BEAM SEE PLAN WF BEAM SEE PLAN BEAM SEE PLAN TO STEEL SEE PLAN 1/4" STIFF PL EACH SIDE @ 4'-0" 6" FROM EACH END OF WT TO STEEL SEE PLAN WT SEE PLAN 3/16 3/16 WT TO BEAM 1/4 3@12
