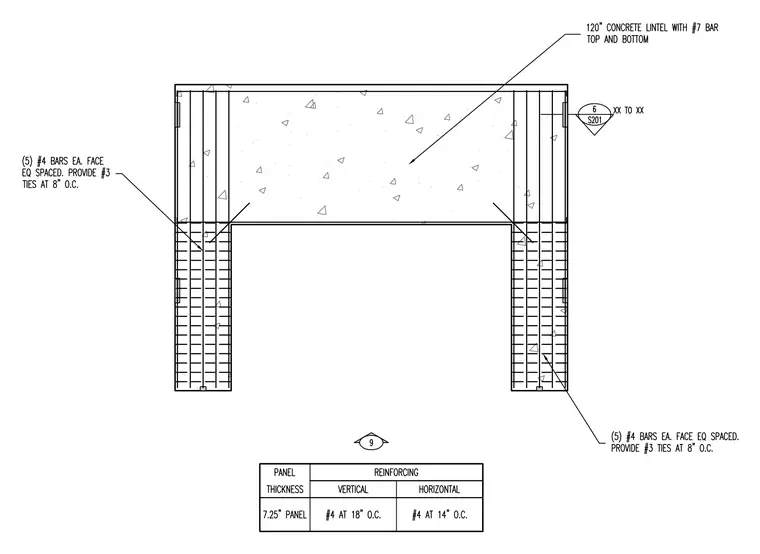

A concrete lintel spans an architectural opening, reinforced with number seven bars at the top and bottom. Five number four bars are placed on each face and spaced equally, supplemented by number three ties at eight inches on center. The jambs contain vertical and horizontal reinforcing including number four bars at eighteen inches on center vertically and number four bars at fourteen inches on center horizontally within the seven and one-quarter inch thick panel.
