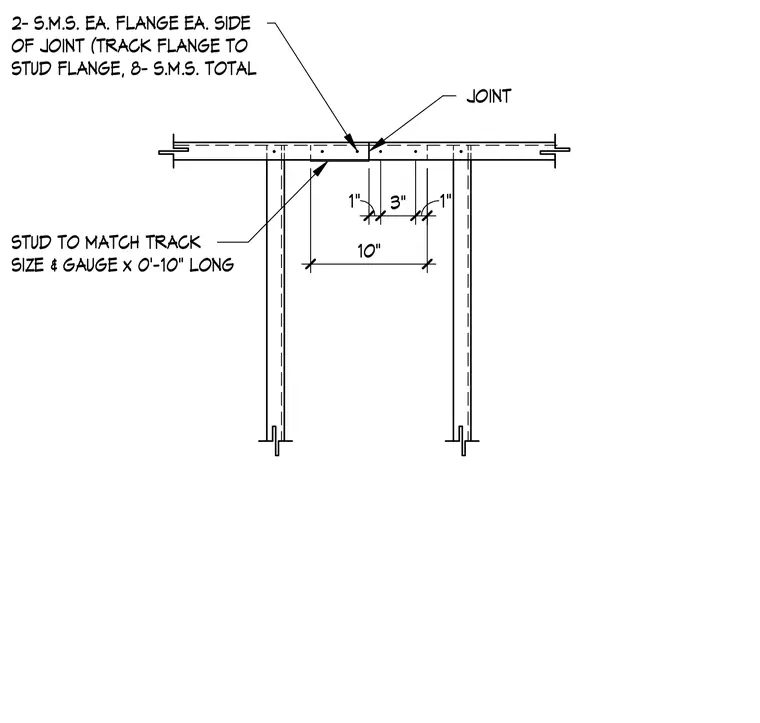

Two aligned cold-formed steel top tracks meet at a butt joint over framing studs. An internal splice stud segment matching the track size and gauge is inserted ten inches long across the joint. Two self-tapping sheet metal screws fasten each track flange on each side of the joint, totaling eight screws across the assembly.
2- S.M.S. EA. FLANGE EA. SIDE OF JOINT (TRACK FLANGE TO STUD FLANGE, 8- S.M.S. TOTAL 10" 1" 3" 1" STUD TO MATCH TRACK SIZE & GAUGE x 0'-10" LONG JOINT
