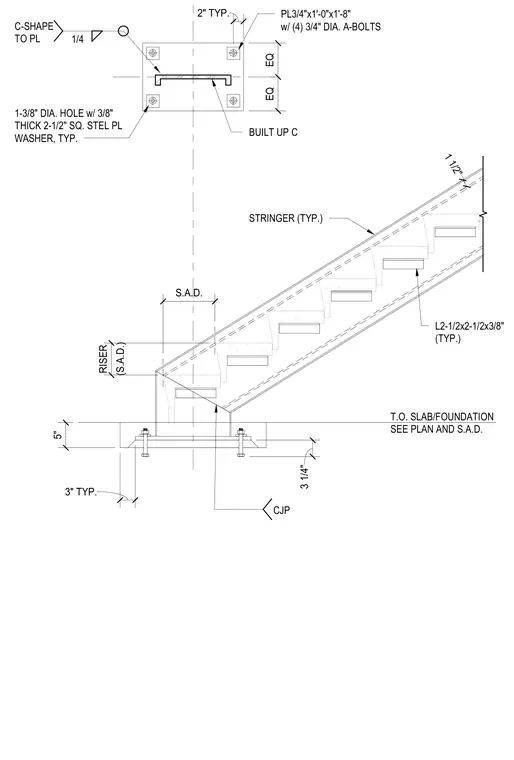

An exterior steel stair stringer connects to a concrete slab or foundation using a three-quarter-inch thick by one-foot by one-foot eight-inch base plate secured by four three-quarter-inch diameter anchor bolts with three-eighth-inch thick by two-and-a-half-inch square steel plate washers and one-and-three-eighth-inch diameter holes. The built-up channel stringer bears on the base plate with complete joint penetration welds and connects to typical two-and-a-half by two-and-a-half by three-eighth-inch angles for the stair treads. The assembly fastens to the top of the slab or foundation as specified per plan.
PL3/4"x1'-0"x1'-8" w/ (4) 3/4" DIA. A-BOLTS BUILT UP C 1/4 C-SHAPE TO PL L2-1/2x2-1/2x3/8" (TYP.) T.O. SLAB/FOUNDATION STRINGER (TYP.) CJP 1-3/8" DIA. HOLE w/ 3/8" THICK 2-1/2" SQ. STEL PL WASHER, TYP. 2" TYP. EQ EQ 1 1/2" S.A.D. (S.A.D.) RISER SEE PLAN AND S.A.D. 3 1/4" 5" 3" TYP.
