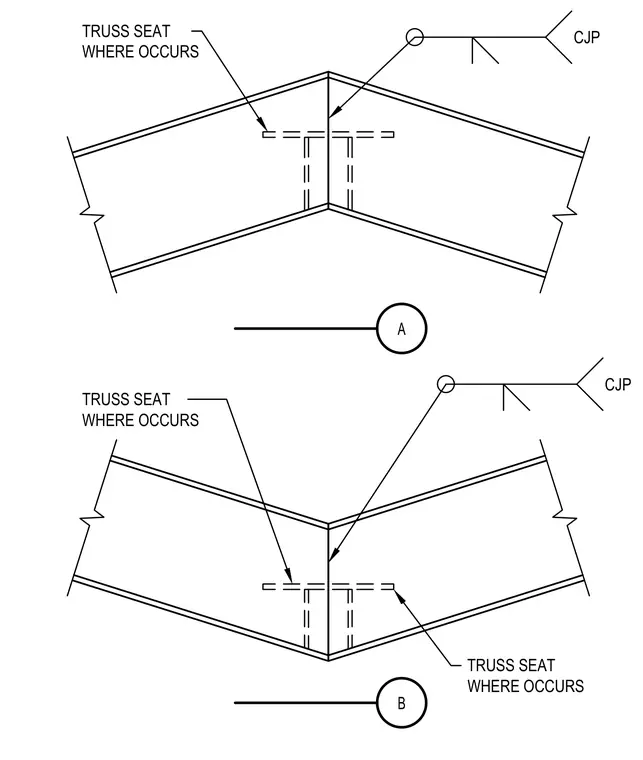

Two sloped steel truss members meet at a ridge or slope break and connect via a complete joint penetration weld at the joint interface. A truss seat is provided where required to support the assembly, with intersecting lines indicating internal framing members and plates. Field welding requires complete joint penetration across the abutting members.
A B TRUSS SEAT WHERE OCCURS TRUSS SEAT WHERE OCCURS CJP CJP TRUSS SEAT WHERE OCCURS
