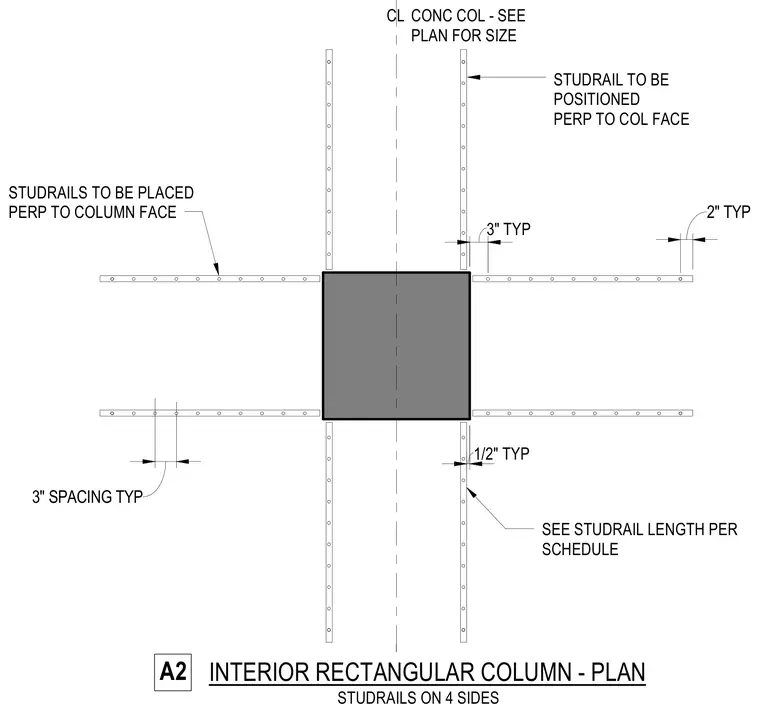

Studrails are positioned perpendicular to each face of the interior rectangular concrete column on all four sides. The studrail length is specified per the schedule while column sizes are determined per plan. Studrails feature a typical spacing of three inches with a two-inch dimension and a half-inch typical offset from the column face.
STUDRAIL TO BE POSITIONED PERP TO COL FACE A2 INTERIOR RECTANGULAR COLUMN - PLAN 3" TYP 1/2" TYP SEE STUDRAIL LENGTH PER SCHEDULE STUDRAILS TO BE PLACED PERP TO COLUMN FACE 3" SPACING TYP 2" TYP STUDRAILS ON 4 SIDES CL CONC COL - SEE PLAN FOR SIZE
