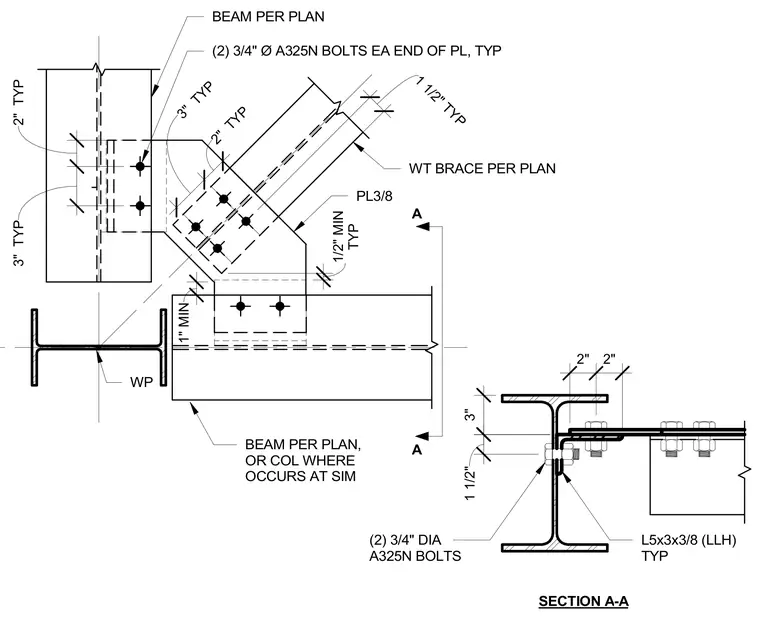

A WT brace connects to a three-eighths-inch gusset plate welded with a one-half-inch minimum fillet weld typical to the supporting beam and column flange. The brace flange secures to the gusset plate using two three-quarter-inch diameter A325N bolts at each end of the plate. A secondary angle member L5x3x3/8 connects via two three-quarter-inch diameter A325N bolts typical at each end. Section A-A details the angle attachment spanning back to the structural framing.
BEAM PER PLAN (2) 3/4" Ø A325N BOLTS EA END OF PL, TYP WT BRACE PER PLAN PL3/8 WP 1" MIN 3" TYP 2" TYP 3" TYP 2" TYP A A BEAM PER PLAN, OR COL WHERE OCCURS AT SIM TYP 1/2" MIN 1 1/2" TYP 2" 2" L5x3x3/8 (LLH) TYP 3" SECTION A-A 1 1/2" (2) 3/4" DIA A325N BOLTS
