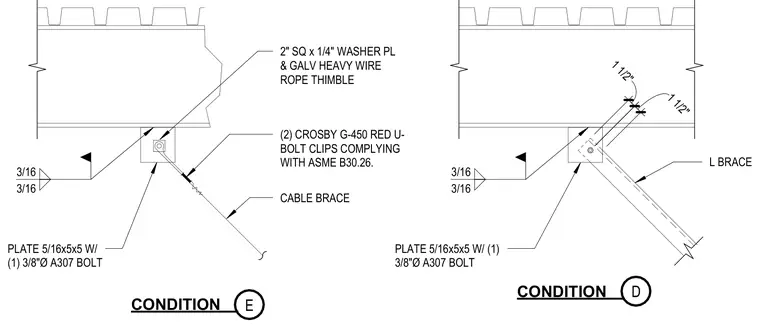

A cable brace connects to an overhead steel member using a 2-inch square by 1/4-inch washer plate, a galvanized heavy wire rope thimble, two Crosby G-450 red U-bolt clips complying with ASME B30.26, and a 5/16x5x5 plate fastened with one 3/8-inch diameter A307 bolt, welded with 3/16-inch fillet welds. An alternative angle brace condition utilizes a structural angle connected via a 5/16x5x5 plate with one 3/8-inch diameter A307 bolt and 3/16-inch fillet welds, spaced with 1-1/2-inch dimensions.
CONDITION 2" SQ x 1/4" WASHER PL & GALV HEAVY WIRE ROPE THIMBLE CABLE BRACE (2) CROSBY G-450 RED U- BOLT CLIPS COMPLYING WITH ASME B30.26. CONDITION L BRACE PLATE 5/16x5x5 W/ (1) 3/8"Ø A307 BOLT PLATE 5/16x5x5 W/ (1) 3/8"Ø A307 BOLT 3/16 3/16 3/16 3/16 1 1/2" 1 1/2" E D
