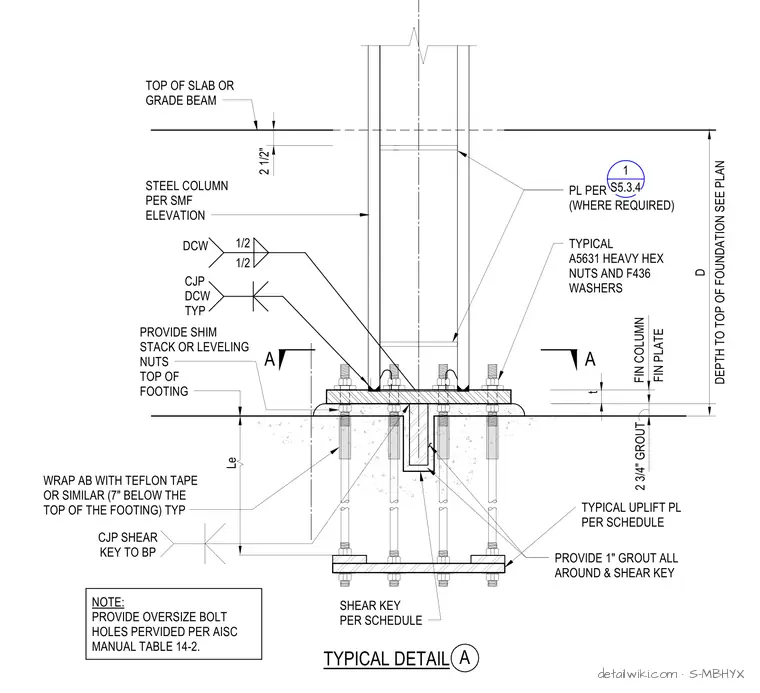

The assembly features a structural steel column welded to a base plate with a complete joint penetration (CJP) weld and stiffener or plate elements. The base plate is anchored to a concrete foundation or grade beam using anchor bolts with heavy hex nuts and washers, supported by leveling nuts or shim stacks over a grouted joint. A structural shear key extends downward into the footing and is surrounded by grout, with an uplift plate assembly at the bottom of the anchor bolts.
Text on the drawing
A A FIN COLUMN FIN PLATE 2 3/4" GROUT Le 2 1/2" D DEPTH TO TOP OF FOUNDATION SEE PLAN t TOP OF SLAB OR GRADE BEAM STEEL COLUMN PER SMF ELEVATION TYPICAL A5631 HEAVY HEX NUTS AND F436 WASHERS PL PER (WHERE REQUIRED) PROVIDE SHIM STACK OR LEVELING NUTS TOP OF FOOTING TYPICAL UPLIFT PL PER SCHEDULE PROVIDE 1" GROUT ALL AROUND & SHEAR KEY NOTE: PROVIDE OVERSIZE BOLT HOLES PERVIDED PER AISC MANUAL TABLE 14-2. 1/2 1/2 CJP DCW TYP TYPICAL DETAIL A SHEAR KEY PER SCHEDULE DCW CJP SHEAR KEY TO BP 1 S5.3.4 WRAP AB WITH TEFLON TAPE OR SIMILAR (7" BELOW THE TOP OF THE FOOTING) TYP
