A sixteen-gauge sheet reinforcement is secured over a metal deck opening using number ten self-drilling screw fasteners or one-half-inch diameter arc plug welds to each deck flute. The reinforcement extends a minimum of six inches on all sides, with fasteners or welds spaced at a maximum of eight inches.

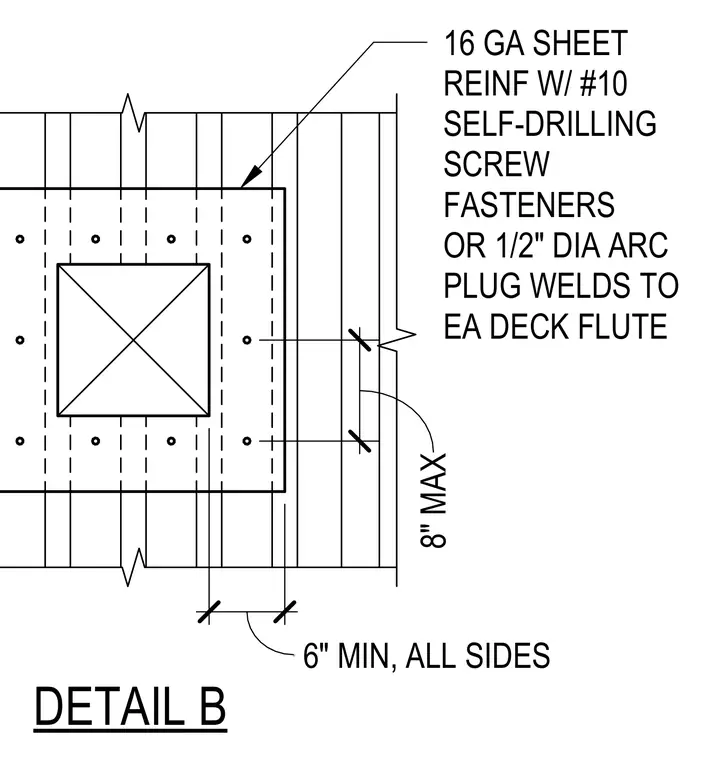

DETAIL B 16 GA SHEET REINF W/ #10 SELF-DRILLING SCREW FASTENERS OR 1/2" DIA ARC PLUG WELDS TO EA DECK FLUTE 8" MAX 6" 6" MIN, ALL SIDES
