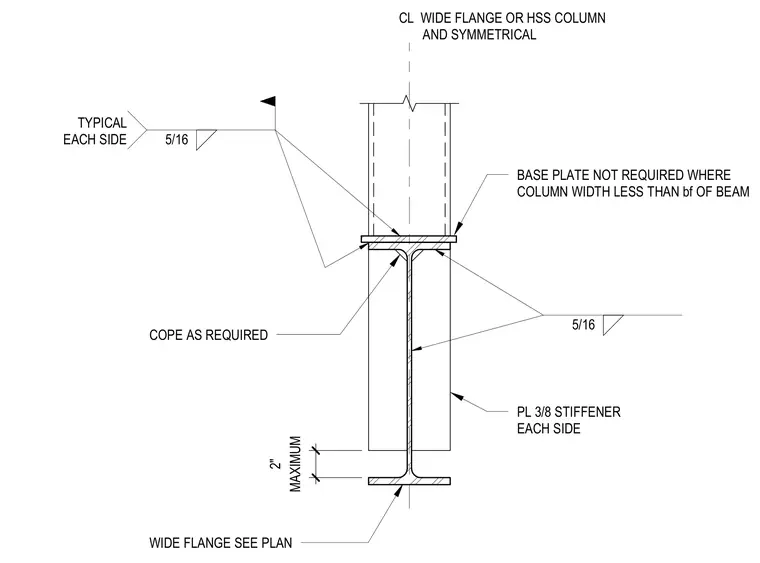

An HSS column or wide flange column bears directly onto a wide flange beam sized per plan, utilizing a base plate that is omitted when the column width is less than the beam flange width. Three-eighths-inch thick stiffener plates are welded to each side of the beam web with five-sixteenth-inch fillet welds typical on each side, extending down with a maximum two-inch dimension and coped as required to fit the beam profile. A five-sixteenth-inch fillet weld secures the column base or base plate to the supporting beam flange.
WIDE FLANGE SEE PLAN CL WIDE FLANGE OR HSS COLUMN AND SYMMETRICAL BASE PLATE NOT REQUIRED WHERE COLUMN WIDTH LESS THAN bf OF BEAM PL 3/8 STIFFENER EACH SIDE COPE AS REQUIRED MAXIMUM 2" 5/16 5/16 TYPICAL EACH SIDE
