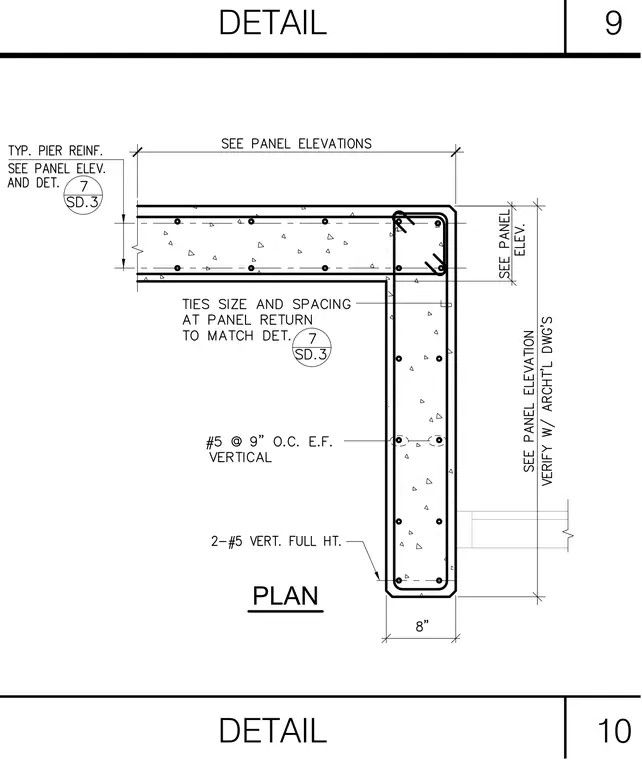

This structural plan detail shows an eight-inch concrete pier with reinforcing details including number five vertical bars at nine inches on center each face and two number five vertical bars full height. The corner tie size and spacing at the panel return match detail seven on sheet SD.3. Pier reinforcement is sized per the panel elevations and details shown on sheet SD.3.
