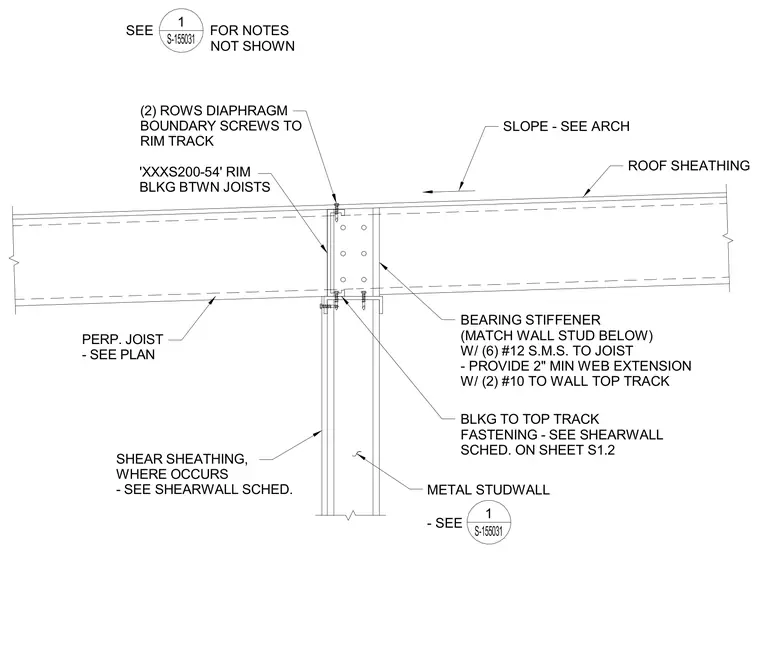

Roof sheathing spans over cold-formed steel joists supported by a metal stud wall below. A bearing stiffener matching the wall stud is attached to the joist with six number twelve sheet metal screws and includes a two-inch minimum web extension fastened to the wall top track with two number ten screws. Rim blocking blocks the space between joists, secured with two rows of diaphragm boundary screws to the rim track. Shear sheathing is applied to the metal stud wall per the structural schedule.
NOT SHOWN SEE FOR NOTES PERP. JOIST - SEE PLAN METAL STUDWALL - SEE (2) ROWS DIAPHRAGM BOUNDARY SCREWS TO RIM TRACK 1 S-155031 SHEAR SHEATHING, WHERE OCCURS - SEE SHEARWALL SCHED. 1 S-155031 ROOF SHEATHING 'XXXS200-54' RIM BLKG BTWN JOISTS SLOPE - SEE ARCH BLKG TO TOP TRACK FASTENING - SEE SHEARWALL SCHED. ON SHEET S1.2 BEARING STIFFENER (MATCH WALL STUD BELOW) W/ (6) #12 S.M.S. TO JOIST - PROVIDE 2" MIN WEB EXTENSION W/ (2) #10 TO WALL TOP TRACK
